ULP COMPRESSION MOUNT
OPTION 204N

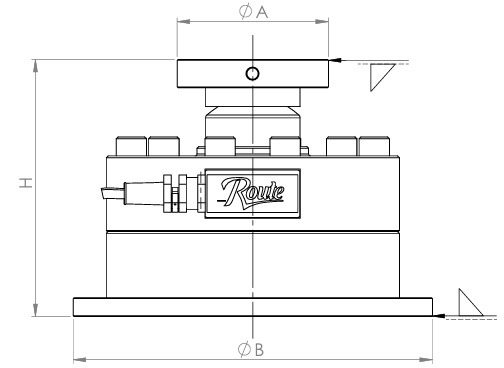

DIMENSION SPECIFICATIONS
Capacity |
ØA |
ØB |
H |
|---|---|---|---|
1T/2T |
62 |
140 |
112 |
5T |
80 |
155 |
122 |
10T/20T |
94 |
190 |
144 |
30T |
|||
50T |
All dimensions are in millimeters.
Grub screw on top locating ring is loosened after installation so that the top cup can self-centre.
